Fluorine lined centrifugal pump-IHF

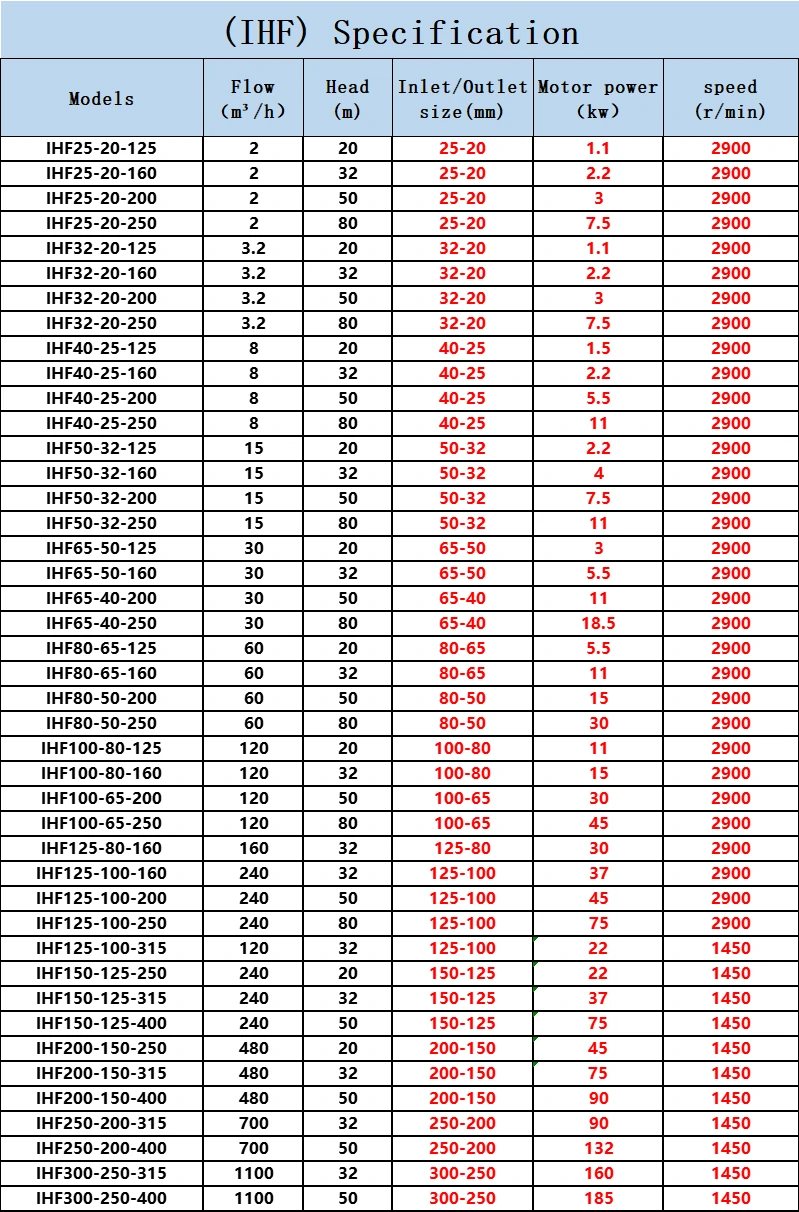

Product parameters

Flow Range:
Head Range:
Power Range:
Temperature resistant range:
Range of inlet and outlet caliber:
Material:
Design standards:

1.6m³/h-3800m³/h
5m-130m
1.1kw-750kw
-20℃-180℃
DN25-DN400
Lined with F46/PVDF/PFA
GB/T9969.1 ISO5828

Fluorine-lined pumps are widely used in the transportation of corrosive media in chemical production, the treatment and acid addition of chlorine wastewater in ion-exchange membrane caustic soda projects, the transportation of electrolyte in Non-ferrous metal smelting, and the acid washing process in automobile manufacturing, and pharmaceutical, petroleum, electroplating, dyes, pesticides, paper, food and other industries, long-term transport of any concentration of sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidant and other strong corrosive media at the temperature of -20 ° C ~ 180 ° C without any damage.
